The Next Generation of Live Production Technology

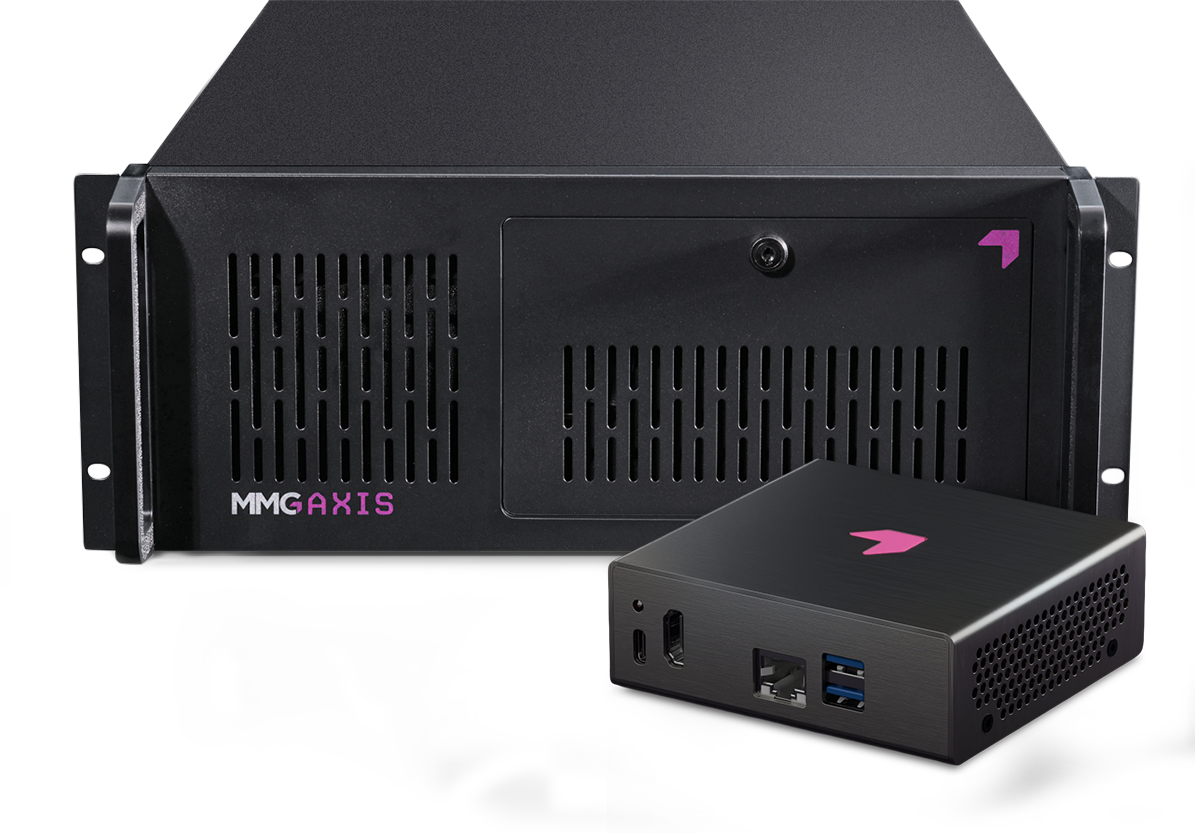

Introducing MMG Axis

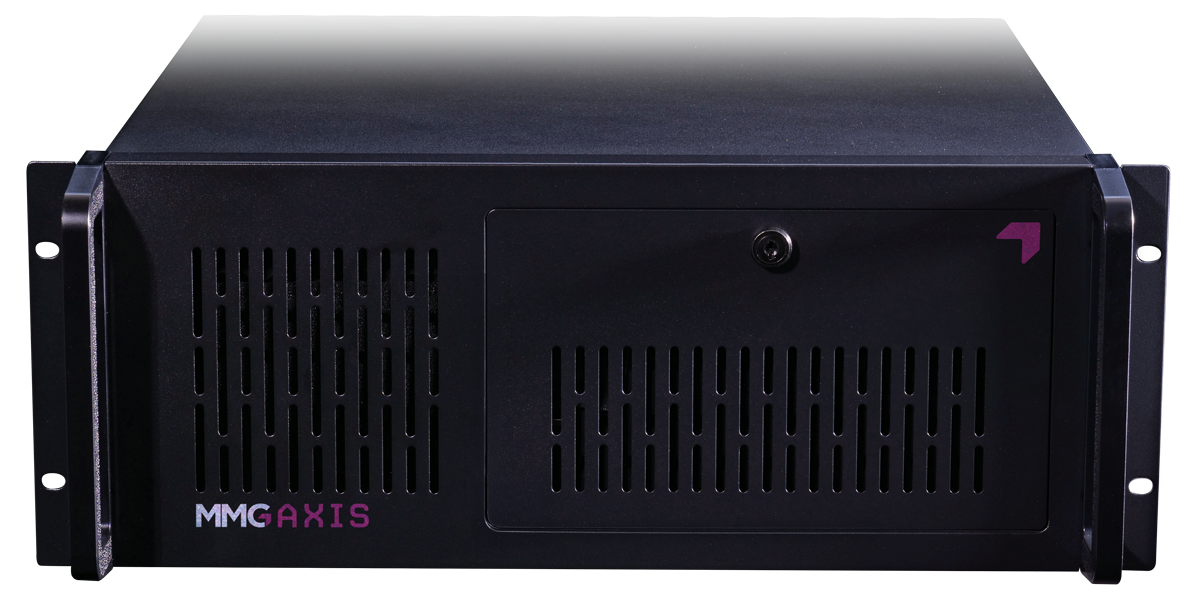

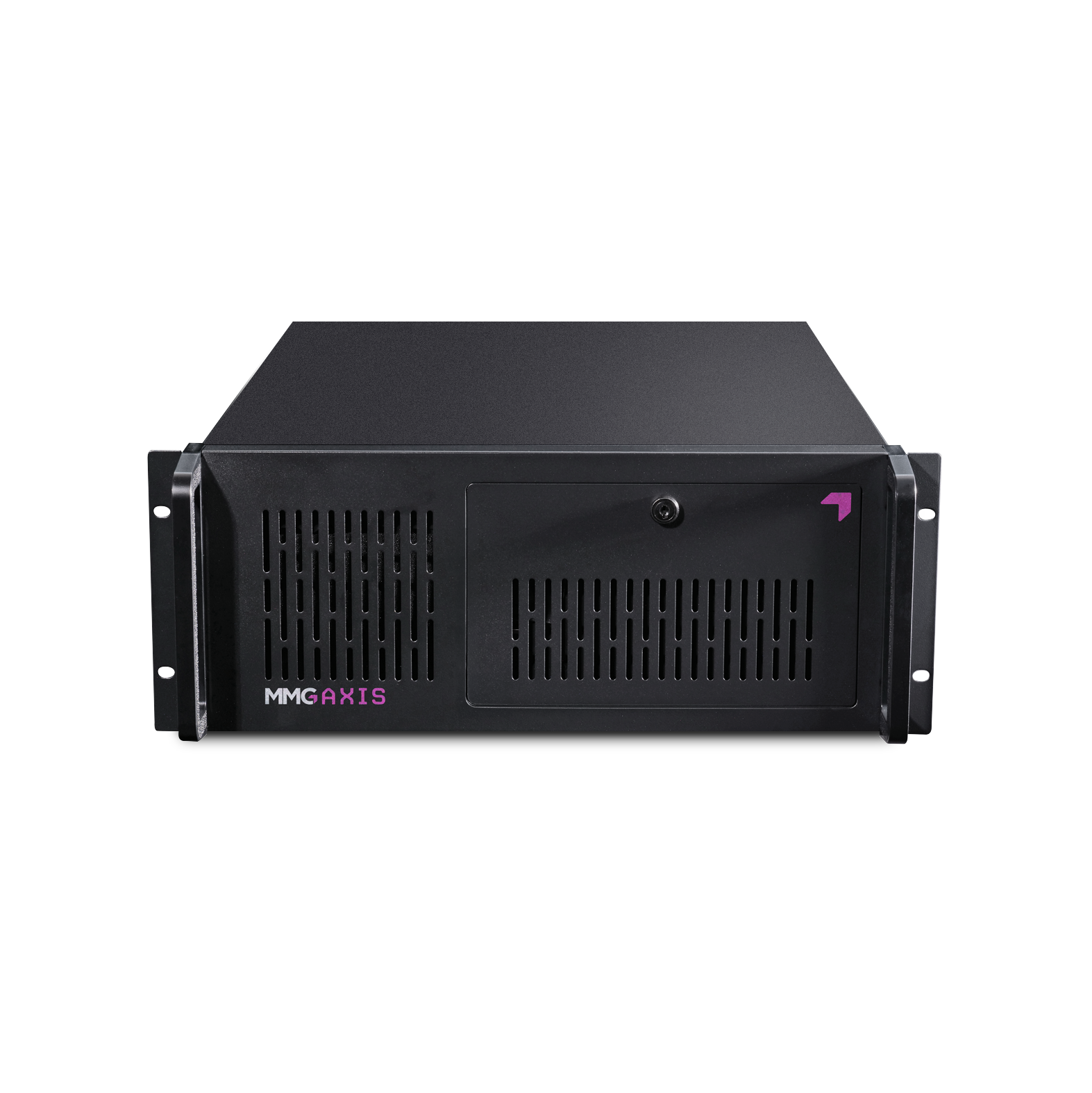

A high-performance, rack-mounted AV appliance designed to be the heart of AV over IP production

The MMG Axis is a high-performance, rack-mounted AV appliance designed to be the heart of AV over IP production, bridging SDI workflows with modern NDI®-based IP production systems.

The AXIS has many roles to play; it IS your Switcher, Signal Conversion, NDI Bridge, Vmix Machine, TriCaster Machine, Live Streaming & Remote Production Power House.

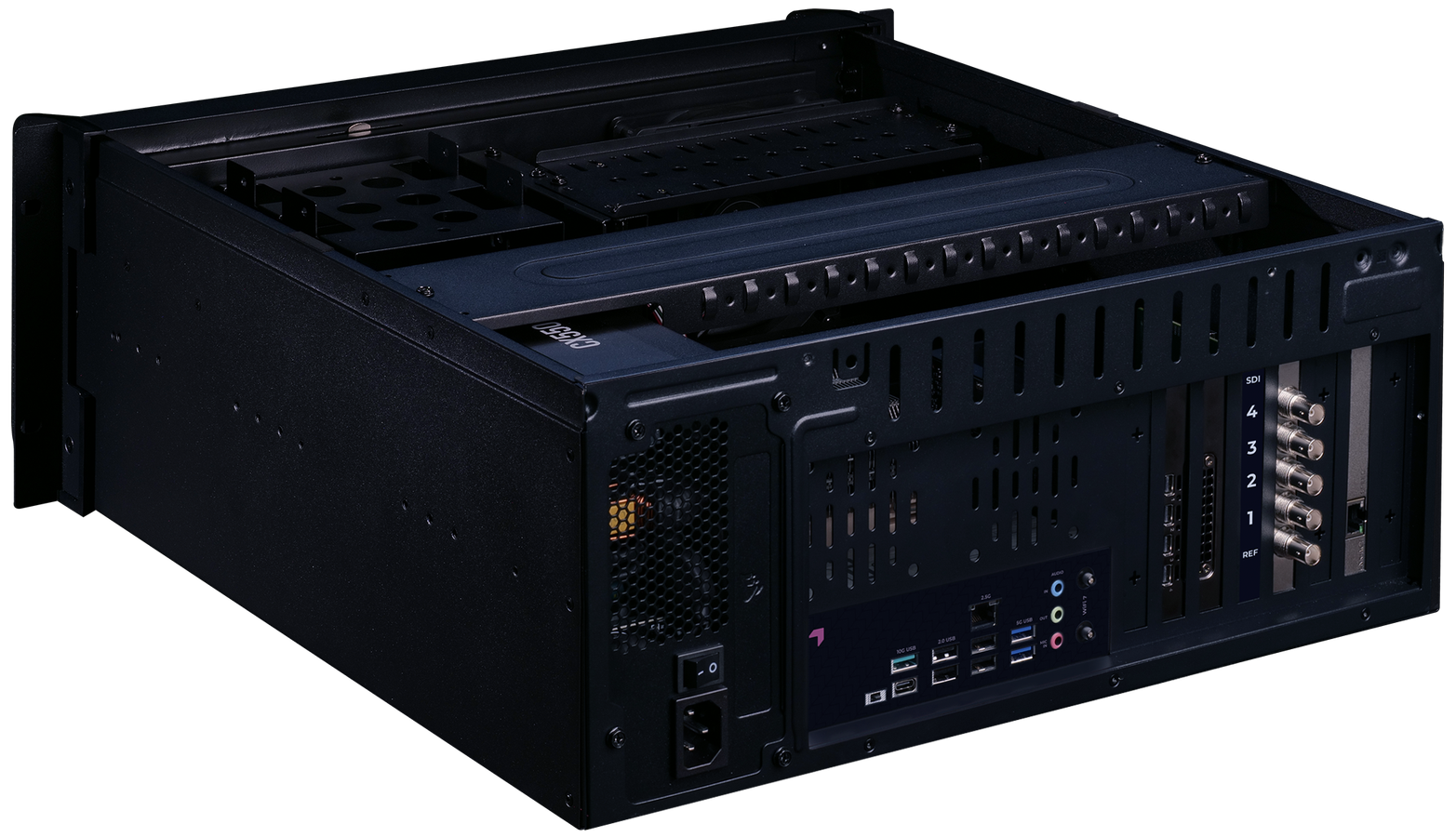

It features four bidirectional 3G-SDI ports (with audio embed/de-embed), 4 display ports, a 10 GbE and 2.5 GbE network interface (plus WiFi 7) and supports real-time SDI↔NDI conversion—ideal for live and hybrid event production, with ULTRA LOW latency – encoding or decoding in under 30ms. The architecture supports processing for up to 94 NDI's at 1080p 60fps or lower volumes at higher resolutions such as 4K or 8K.

It integrates natively with tools like vMix, OBS, TriCaster and Dante as the system has been optimised and is left open for you to install and run software.

Suitable for in-person, Hybrid & Virtual AV Production, broadcast studios, live-event venues, remote production, education and corporate streaming.

£6,995

Buy

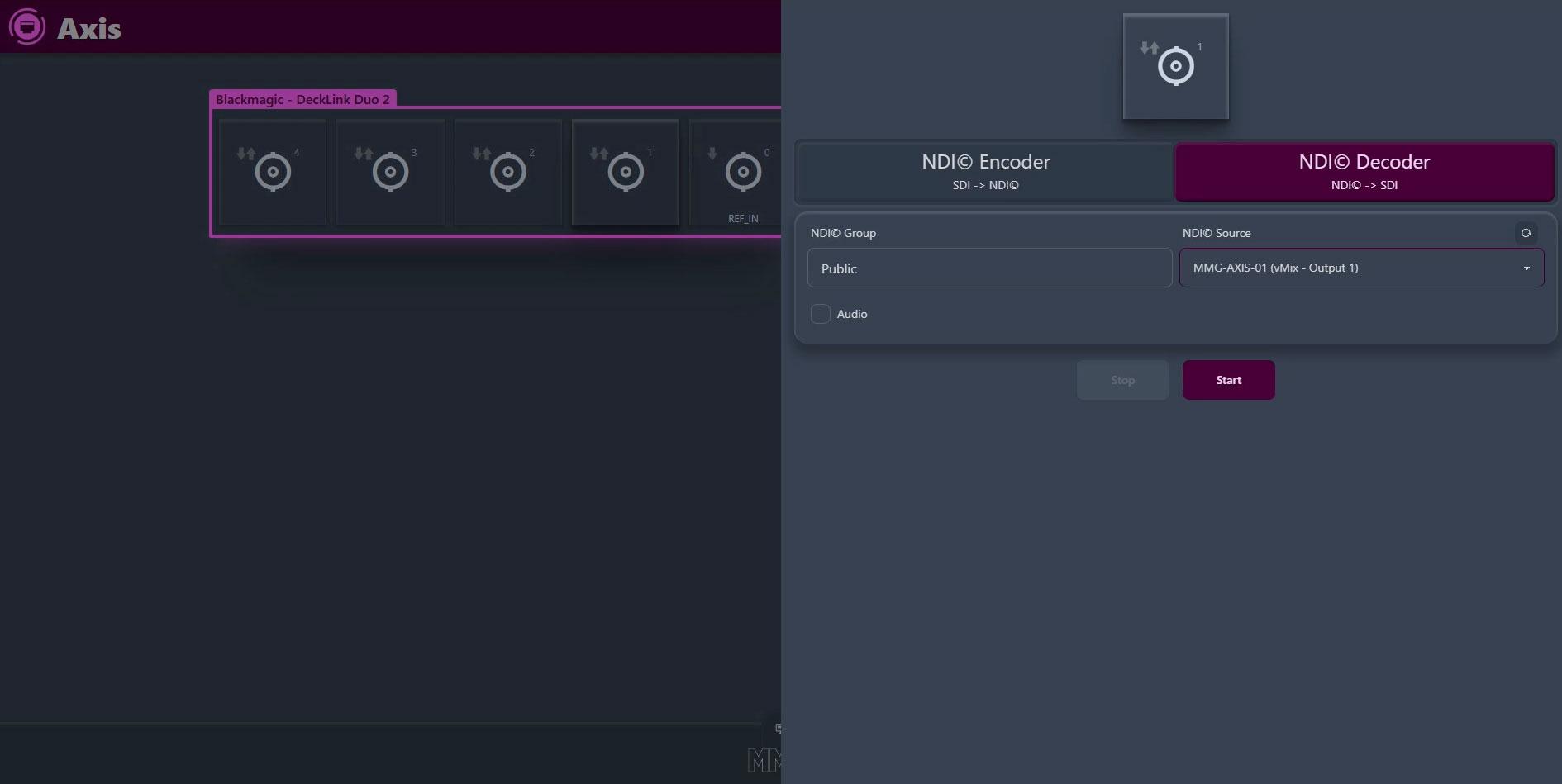

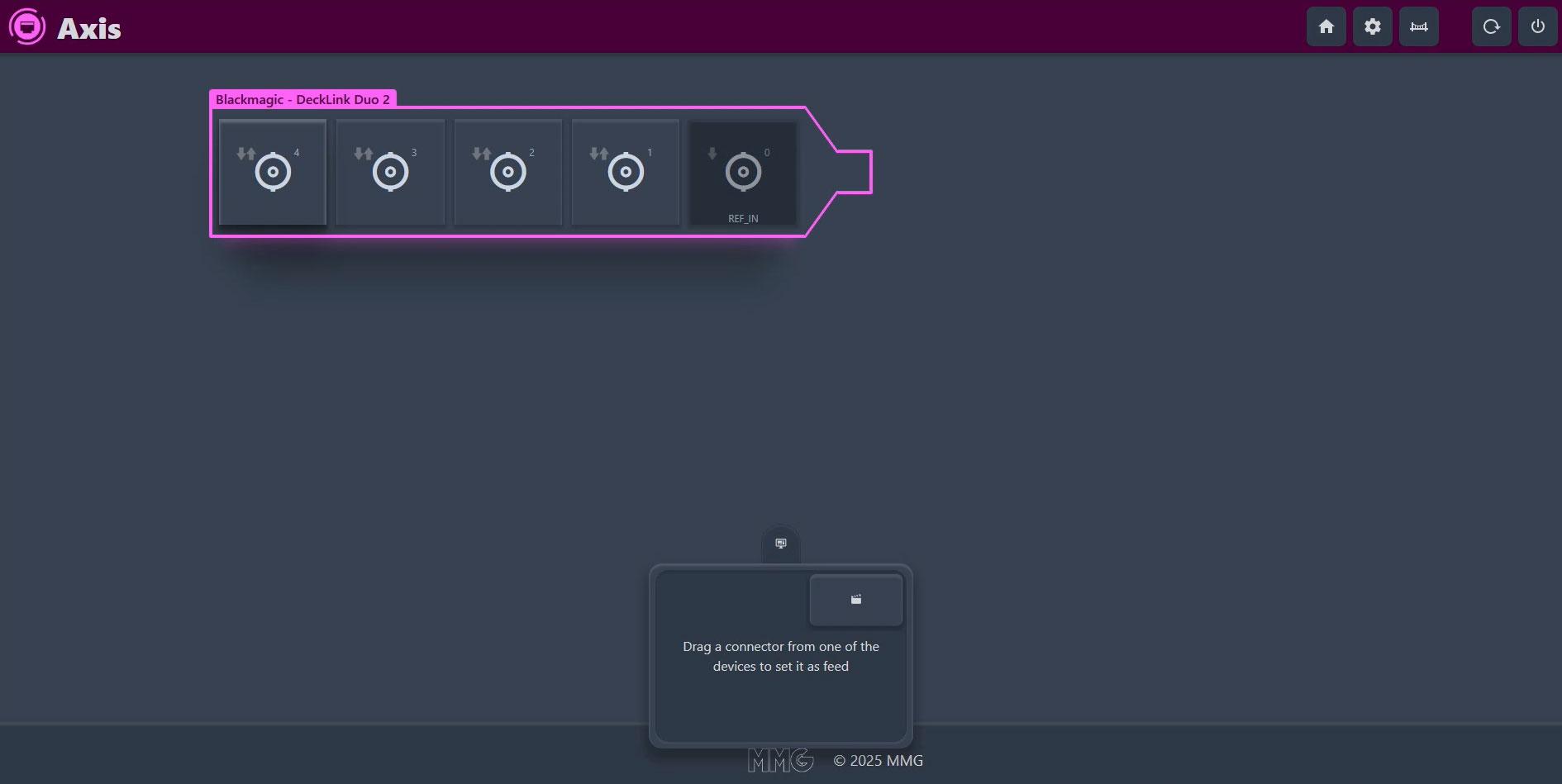

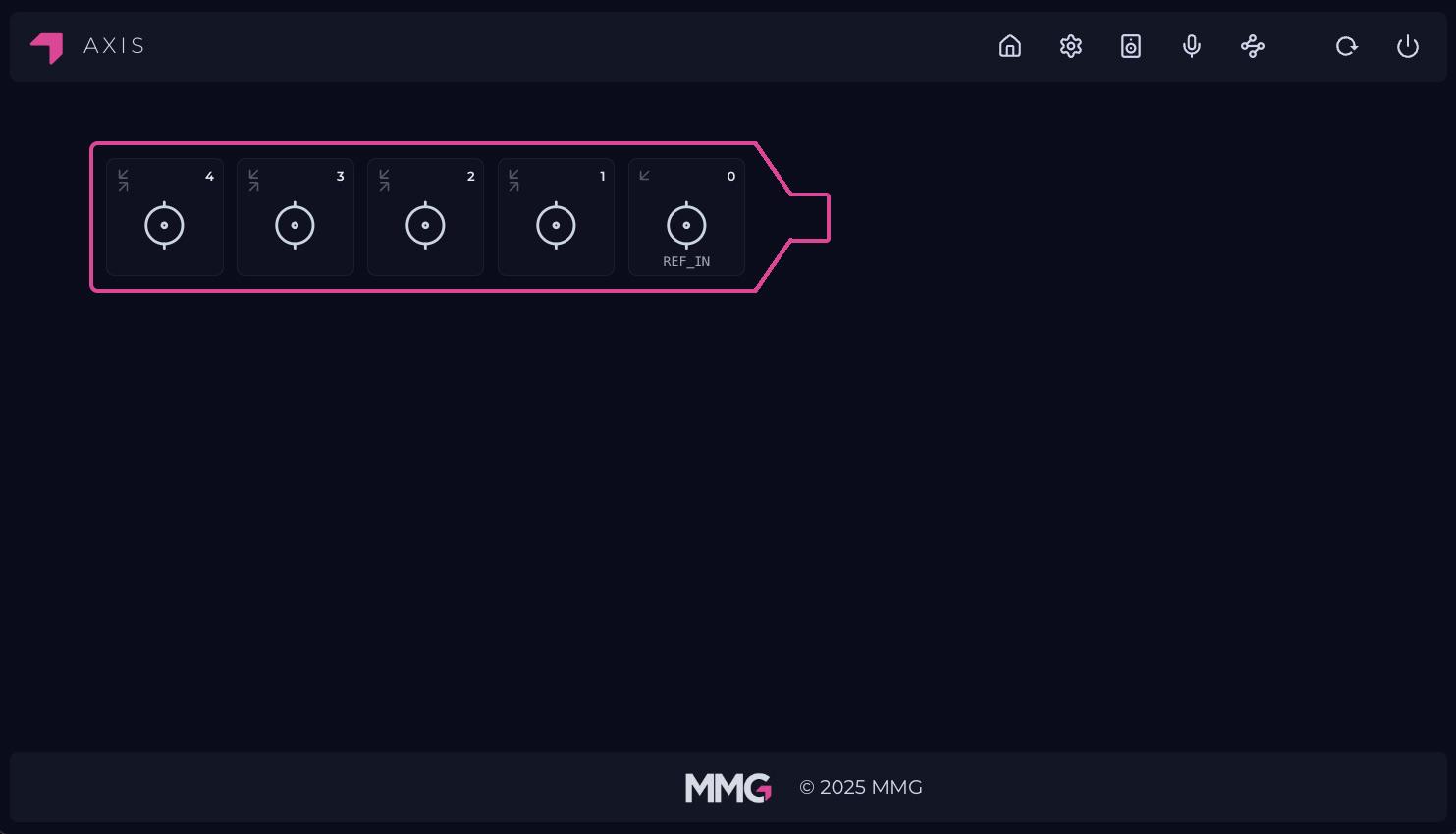

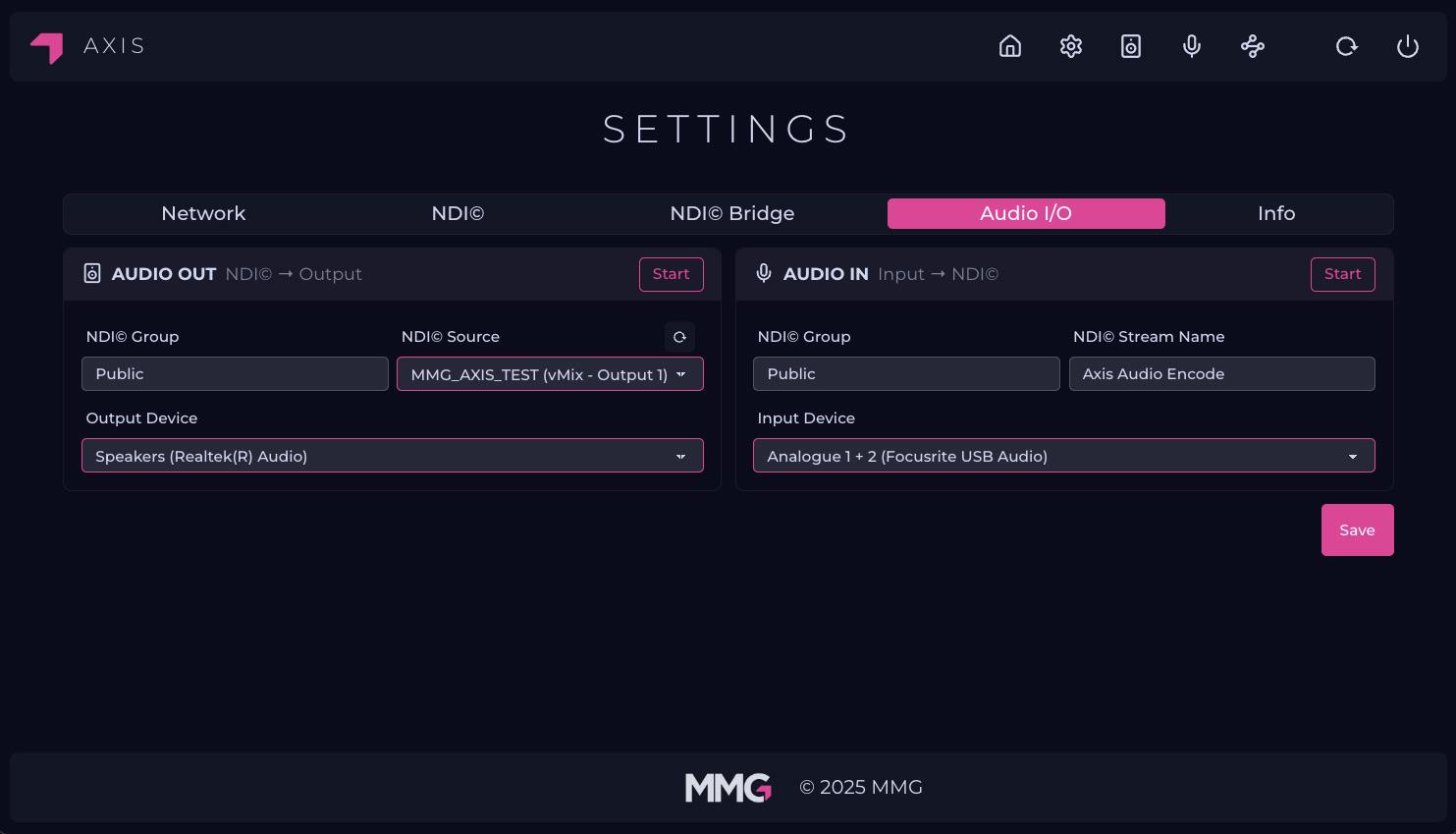

Intuitive Software

An interface designed to empower, not distract.

MMG AXIS features a modern, intuitive software interface that puts you in control without getting in your way. Every feature is thoughtfully organised, making complex workflows simple and accessible. Whether you're a seasoned professional or new to live production, you'll find the controls clear, responsive, and easy to master—so you can focus on your creative vision, not the technology.

Tech Specs

Hardware that keeps pace with the demands of real-time production.

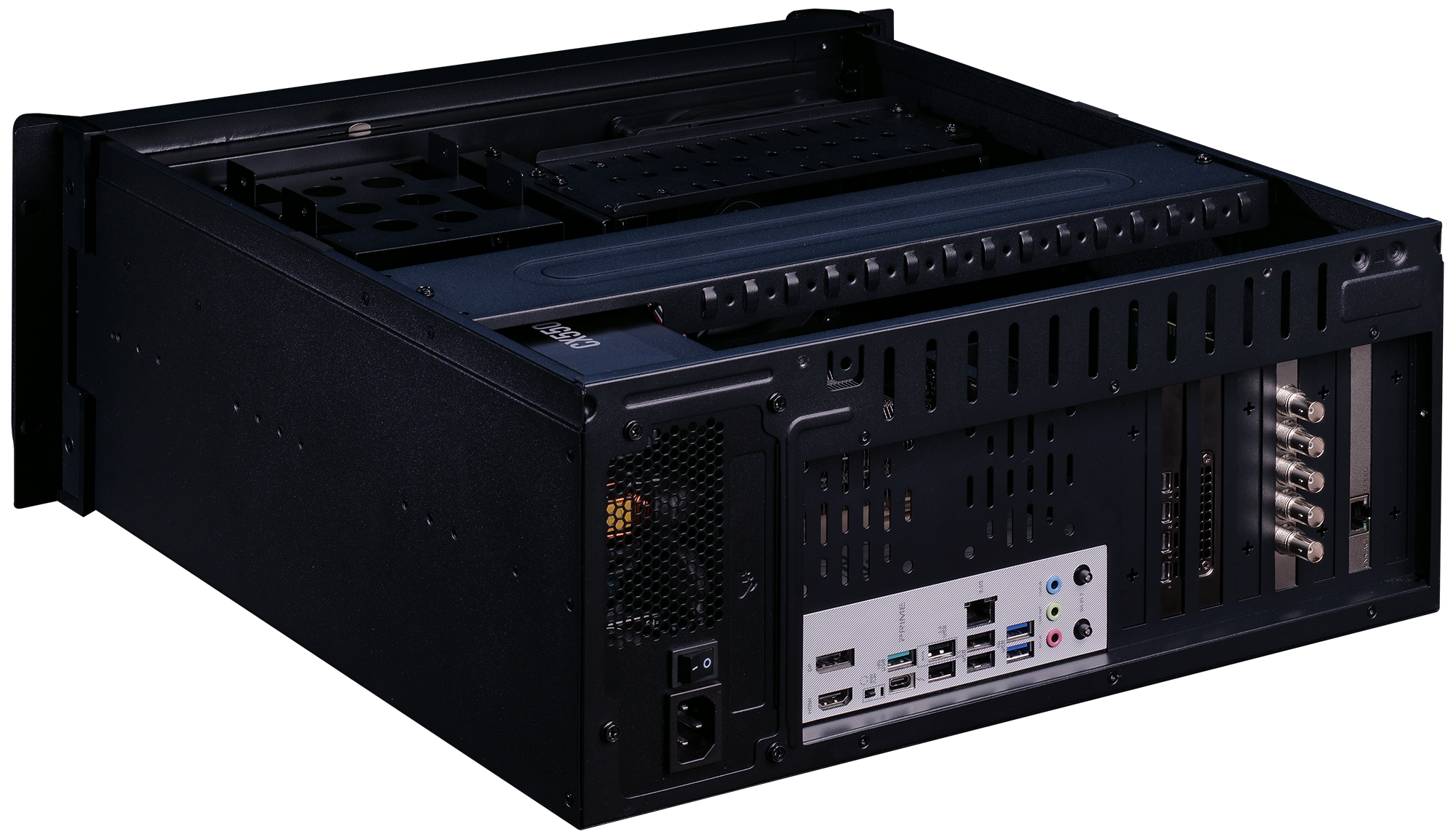

4× Bidirectional 3G SDI with audio up to 8 channels
4 Mini DisplayPort Outputs for external display or signal routing
10GbE RJ45 & 2.5G RJ45, Wifi 7 connectivity for high-throughput NDI® networking
NDI® Bridge Embedded for remote production workflows
Ultra-low latency suitable for IMAG and time-critical setups
4:2:2 color sampling with alpha channel support
1080p/i, 720p, and SD formats compatibility
8 I/O configuration with hardware upgrade
Super low noise cooling
Streaming Codecs inc; SRT, RTMP, RTSP - via Vmix or other softwares
stereo audio in/out (3.5mm) or SDI - With NDI conversion
Dante Virtual Sound Card Compatibility (License not included)

View Full Technical Specifications

Target Applications

Versatile across workflows. Scalable across industries.

Whether you're producing a live stream, driving visuals for a worship service, or managing a hybrid conference, MMG AXIS adapts to your setup. Its built-in flexibility makes it a go-to solution across technical and creative environments.

Live Events – Seamlessly integrate into any live production environment.
Broadcast Studios – Enhance your studio's capabilities with advanced NDI® features.
Remote Production – Leverage NDI® Bridge for efficient remote workflows.
Post-Production – Streamline your editing process with real-time SDI monitoring.
Education – Power hybrid classrooms, lecture capture, and campus-wide streaming.
Corporate – Enable high-quality video for conferences, town halls, and training.
Houses of Worship – Support multi-camera worship services and outreach.
Sports & Esports – Deliver low-latency video for live sports and gaming events.

Explore How Axis Fits Your Workflow

MMG Axis

The heart of AV over IP.
