Video I/O handles the core video conversion functionality of AXIS. You can configure Video Encoding (SDI → NDI®) and Video Decoding (NDI® → SDI) from the Home page or via Settings.

Key video processing features:

• SDI Input → NDI®: Convert SDI sources to NDI® streams for network distribution
• NDI® → SDI Output: Receive NDI® streams and output to SDI devices
• Multiple formats: Support for HD and 4K resolutions
• Low latency: Optimized for real-time video production workflows

The video encoder and decoder can be controlled independently, allowing flexible input/output configurations based on your production needs.

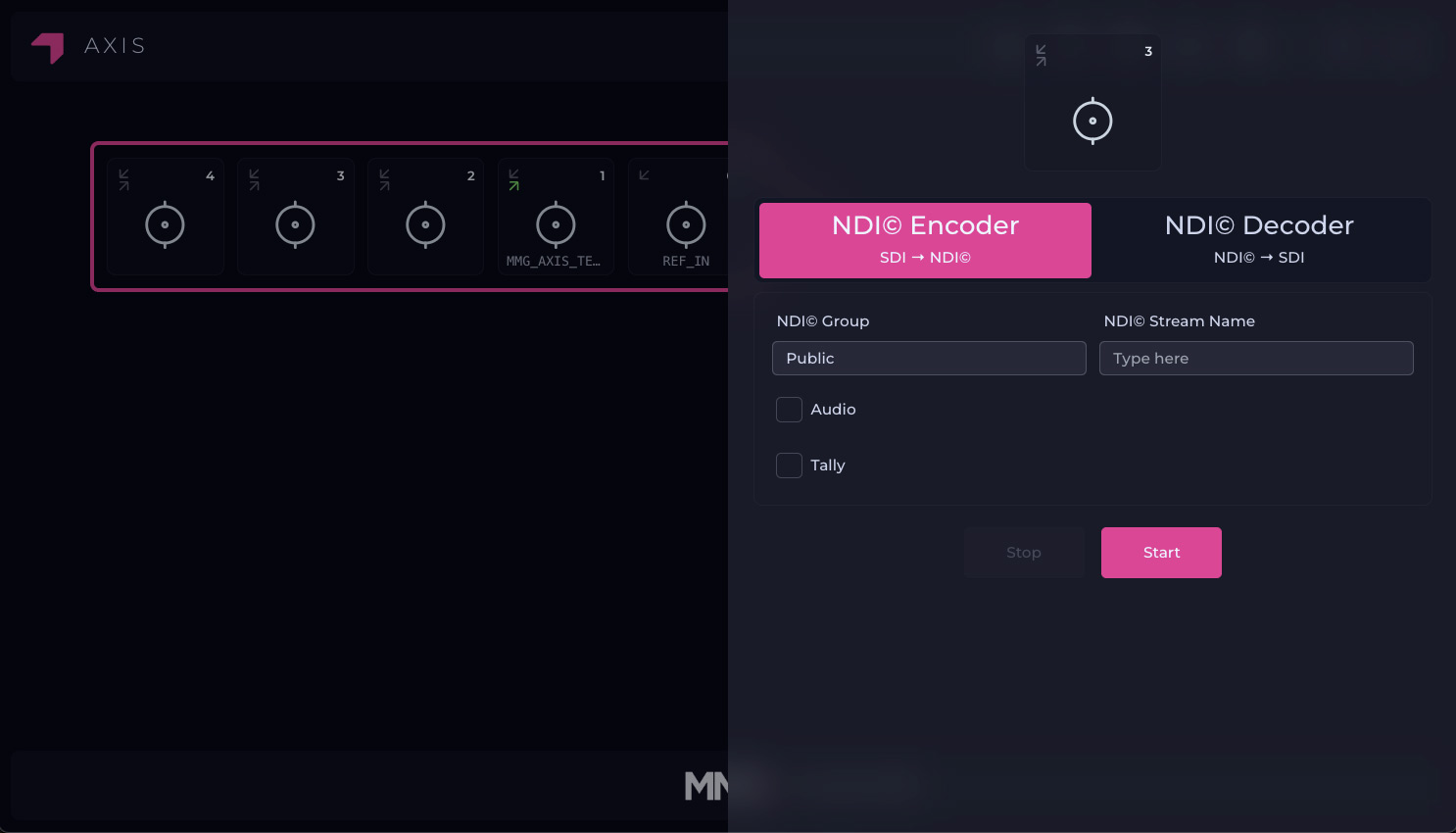

1. On Home, click the SDI port you want to use.
2. In the dialog, select NDI® Encoder (the tab turns pink when active).
3. Configure:
   • NDI® Stream Name – how the source appears on the NDI® network.
   • NDI® Group – Access Manager group(s) (default: Public).
   • Audio – include embedded SDI audio.
   • Tally – enable NDI® tally if needed.
4. Click Start.

What happens next

• Settings lock while the encoder is running.
• A green arrow appears as running status, and the Home page shows the stream name on that port.

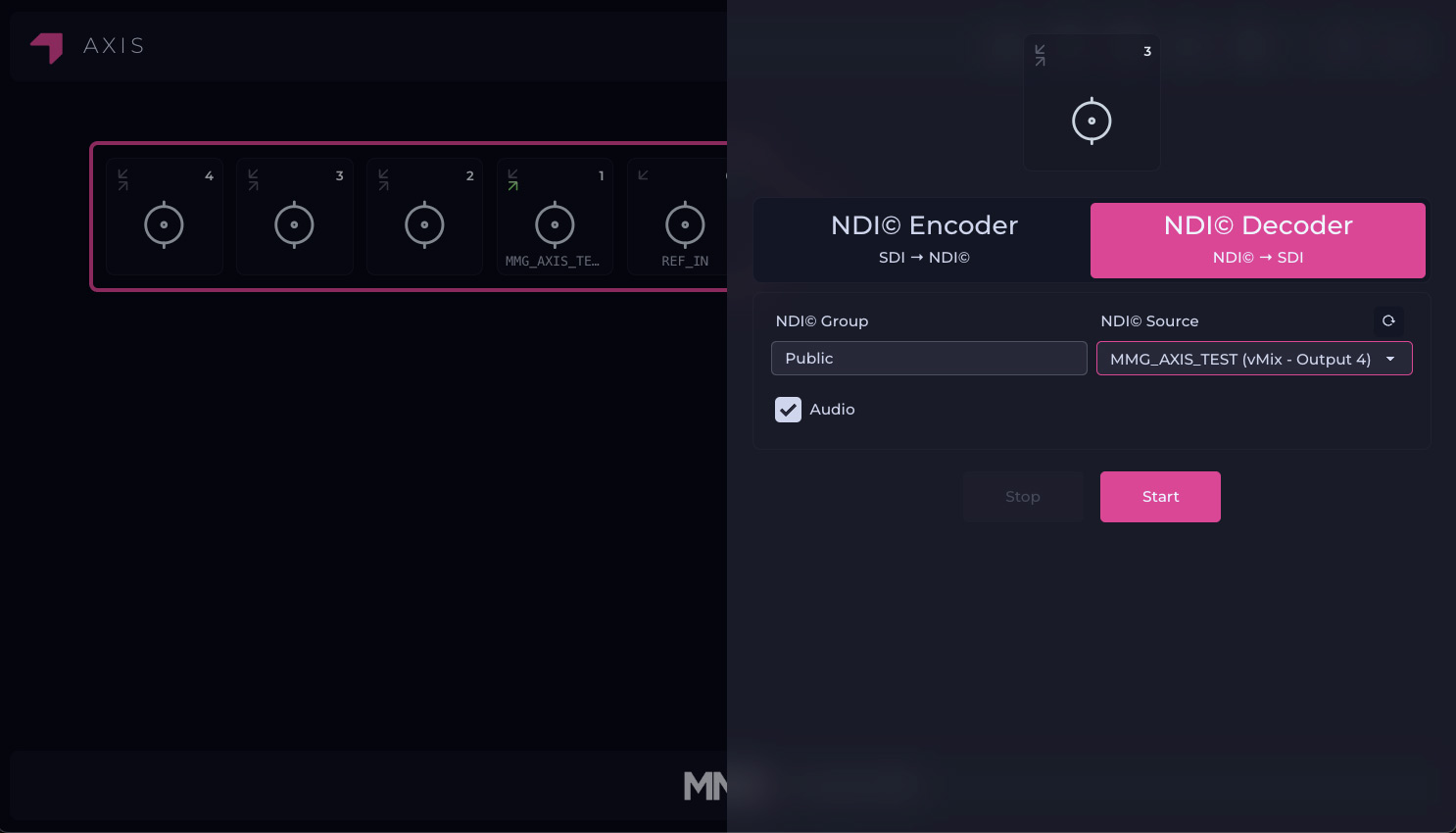

1. On Home, click the SDI port you want to use.
2. Select NDI® Decoder (tab turns pink when active).
3. Refresh the NDI® source list.
4. Choose:
   • NDI® Source – pick from the dropdown.
   • NDI® Group – Access Manager group(s) to pull from (default: Public).
   • Audio – embed NDI® audio onto SDI output.
5. Click Start.

What happens next

• Settings lock while the decoder is running.
• A green arrow shows it’s active, and the Home page displays the decoded source name for that port.
